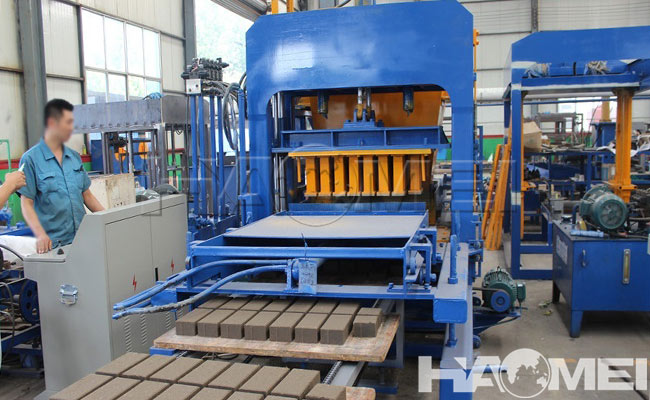

Paver Block Manufacturing Machine

The QT series hydraulic paver block manufacturing machine is a commonly used concrete block forming equipment, characterized by high efficiency, intelligence and wide applicability. Paver block manufacturing machine is used to produce various types of concrete blocks, paving blocks, decorative blocks, and other building materials. It uses a hydraulic system to provide powerful pressure, molding concrete in molds to produce high-strength, high-density bricks.

Paver block manufacturing machines come in various types, mainly including:
- Hydraulic paver block making machine:
Employs a hydraulic transmission system, using high-pressure cylinders to drive the molds for block pressing, featuring high pressure and excellent forming effect.
- Road paving block making machine:
Specifically designed for road paving block production, capable of producing various specifications of road paving blocks to meet the paving needs of municipal roads, landscaping, etc.
- Curbstone making machine:
Used for producing curbstones, featuring high forming precision and fast production efficiency.
- Colored block making machine:
Can produce paving blocks in various colors to meet the decorative needs of different occasions.

Take QT10-15 block making machine as an example:
Overall dimensions 9350×2520×2950mm, rated pressure 21MPa, vibration frequency 2800-4500 times/minute, pallet size 1150×900mm, motor power 63.5kw, weight 11000kg.

Work process of a paver block manufacturing machine:
Feeding: The mixed concrete raw materials are fed into the hopper.
Spreading: The automatic spreading system evenly fills the mold with the raw materials.
Vibration and Pressing: High-frequency vibration and hydraulic pressing form the bricks.
Demolding: A hydraulic ejection device pushes the formed bricks out of the mold.
Block output: The blocks are conveyed to the curing area or stacker via a conveyor belt.

Features of paver block manufacturing machine:
- High efficiency and energy saving:
Utilizes dual hydraulic and vibration molding technology to ensure high brick density and low scrap rate. Some models are equipped with variable frequency energy-saving motors, saving more than 30% of electricity compared to traditional brick machines.
- Intelligent control:
Typically employs a PLC + touchscreen control system, allowing for easy adjustment of parameters such as pressure, vibration frequency, and molding time, simplifying operation. It also features self-detection of faults, reducing downtime and maintenance costs.
- High adaptability:
By changing different molds, it can produce various specifications of brick products, including standard bricks, hollow bricks, and kerbstones. It is compatible with a wide range of raw materials, including cement, fly ash, slag, and recycled aggregates from construction waste.
- Stable and durable:
Key components utilize high-strength steel and imported hydraulic components, ensuring long-term stable operation. The vibration table features a shock-absorbing design, reducing noise and extending the equipment's lifespan.

The paver blocks manufactured by this machine are widely used in municipal roads, landscaping, squares, sidewalks, and other locations. The paver block manufacturing machines have high permeability and anti-slip properties, effectively improving urban drainage and pedestrian safety.
