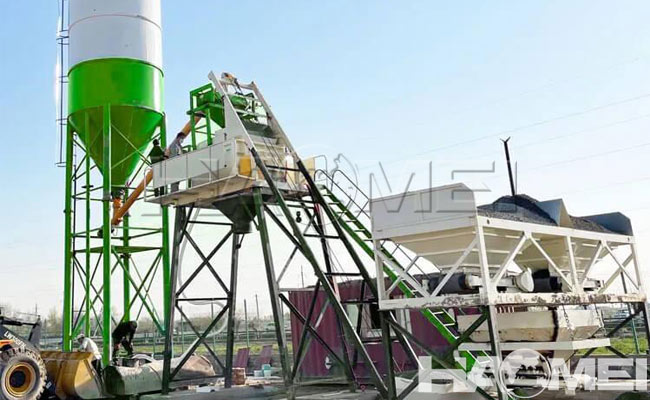

Mini Concrete Batch Mix Plant - HZS35

A mini concrete batch mix plant is a complete set of equipment for producing concrete. It features a small footprint, convenient installation, and moderate production efficiency, making it widely used in small to medium-sized construction projects and precast component plants. In the field of small to medium-sized construction projects, the HZS35 mini concrete batching plant, with its efficient and practical performance, has become the preferred equipment for many construction companies. It not only provides a stable supply of concrete but also adapts to diverse construction environments, providing a solid guarantee for the smooth progress of projects.

Main components of HZS35 mini concrete batch mix plant:
- Mixing unit:
Typically uses a JS750 twin-shaft forced concrete mixer, with a discharge capacity of 0.75 cubic meters per batch and a mixing power of approximately 30kW. This type of mixer offers good mixing quality and high efficiency.
- Batching machine:
Mostly uses a PLD1200 three-bin batching machine, capable of accurately batching three different aggregates with high precision, meeting the needs of different concrete mix proportions.
- Conveying system:
Aggregates are generally conveyed using bucket elevators, featuring high working efficiency and a small footprint. Cement and other powdery materials are transported from the cement silo to the mixing unit by a screw conveyor.
- Metering system:
Aggregates, cement, water, and liquid admixtures are all metered using electronic scales, ensuring high batching accuracy. Aggregate metering accuracy reaches ±2%, while cement, water, and admixture metering accuracy reaches ±1%.
- Electrical control system:
Utilizes advanced control technology, such as PLC digital display, enabling automated control of the concrete batch plant. Operation is convenient and performance is reliable.

Features of HZS35 mini concrete batch mix plant:
- Integrated design:
Employs a modular, modular structure, facilitating easy installation and relocation, suitable for use at different construction sites.
- Environmentally friendly:
The fully enclosed powder storage, conveying, and mixing system significantly reduces dust pollution.
- High adaptability:
The concrete mix ratio can be adjusted according to different construction needs, suitable for mixing various types of concrete, including dry-hard concrete and lightweight aggregate concrete.

Technical parameters of HZS35 concrete batching plant:
Theoretical Productivity: 35 cubic meters/hour.
Total Power: Approximately 75kW.
Standard Discharge Height: 2 meters.
Working Cycle Time: 72 seconds.
Site Dimensions: Approximately 12 meters × 20 meters.

Applications of mini concrete batch mix plant:
Suitable for small to medium-scale construction projects, such as rural road construction and small residential building construction. It can also be used in precast concrete component production plants and in projects involving field operations, such as highways, bridges, power stations, and dam construction.

In summary, the HZS35 mini concrete batch mix plant excels in structural design, performance indicators, ease of operation, and maintenance costs, providing an efficient and reliable solution for concrete production in small to medium-sized construction projects. It plays a vital role in improving the quality and efficiency of construction projects.
