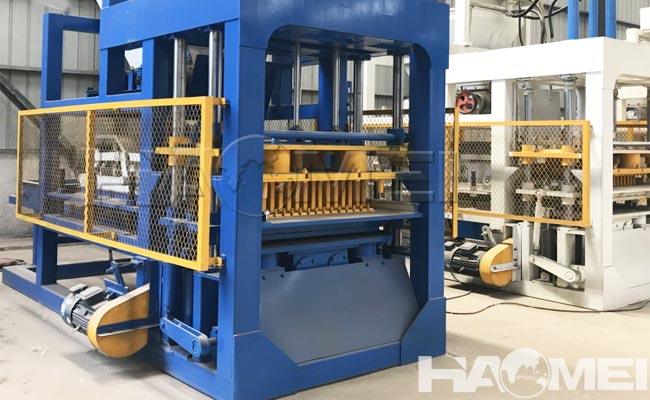

Curbstone Block Making Machine

In modern urban construction, curbstones are an indispensable material. They not only serve as boundaries and dividers in roads, squares, and other public facilities, but also play a vital role in beautifying the urban environment. To meet the growing market demand, curbstone block making machines have emerged. These block making machines are primarily used to produce curbstone blocks of various specifications. These blocks are typically made of concrete or other building materials and feature high strength, wear resistance, and weather resistance. The automated production process improves production efficiency and reduces labor costs.

With breakthroughs in hydraulic transmission technology, modern curbstone block making machines have achieved full-process automation: employing a 3000KN nominal pressure and electro-hydraulic linkage control system, through the coordinated operation of a high-flow dual pump and electromagnetic hydraulic valves, the forming pressure of a 1.2-meter-long curbstone is kept stable at 31.5MPa, improving product dimensional accuracy to ±0.3mm, and increasing efficiency by 400% compared to traditional equipment. Adopt a four-column guide structure and a forced synchronous demolding mechanism, curbstone block making machine equipment maintains a 98% finished product qualification rate even when pressing large curb stones (1000×600×400mm). The hydraulic pallet conveying system enables fully automated operation from raw material conveying and pressing to finished product stacking, achieving a single-shift capacity exceeding 20,000 stones, a 150% increase compared to the 2020 industry average.

Technical parameters of a typical curbstone block machine that we supply:
Production capacity: 500-800 curb stones per hour, depending on the equipment model and production line configuration.
Molding pressure: Typically between 30-50MPa, adjustable to ensure block density.
Vibration frequency: Generally 50-60Hz, adjustable vibration time to ensure sufficient concrete vibration.
Power: Total machine power between 30-50kW, depending on equipment configuration.
Dimensions: The equipment's dimensions are typically around 4m x 2m x 2m, suitable for factory environments.

The main functions of the curbstone block machine equipment include:
Mixing system:
Precisely proportions various raw materials, such as cement, sand, and additives, to ensure the quality of the blocks.
Molding system:
Uses high-pressure molding technology to press the mixed concrete into shape, ensuring the density and strength of the blocks.
Vibration system:
During the molding process, vibration makes the concrete more uniform, eliminates air bubbles, and improves the overall quality of the blocks.
Demolding system:
Automatically demolds the blocks after molding, reducing manual operation and improving production efficiency.
Cure system:
Provides a constant temperature and humidity curing environment to ensure the blocks reach optimal strength during the curing process.

As an important piece of equipment in modern building material production, the curbstone block making machine has been widely used due to its high efficiency and stable performance. Through continuous technological innovation, these machines will provide a more solid foundation for urban construction.
