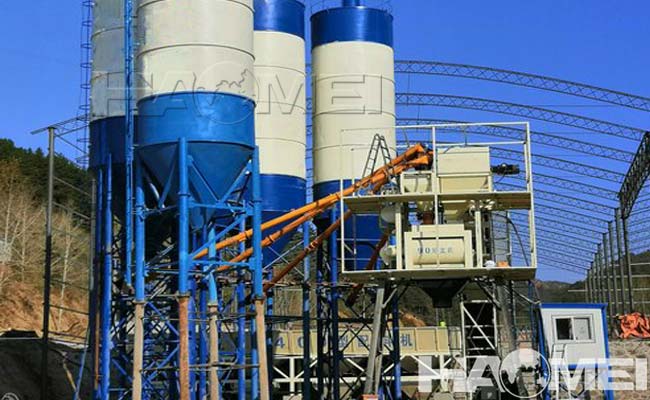

High-Efficiency Fixed Concrete Mixing Plants

The core value of a high-efficiency fixed concrete mixing plant extends beyond its nominal capacity; it lies in the comprehensive efficiency gains achieved throughout the entire lifecycle—from production and site installation to operation and maintenance. As a professional manufacturer of concrete mixing plant equipment, Haomei Machinery offers high efficiency fixed concrete mixing plants that achieves end-to-end productivity gains through optimized core machinery, modular design, and streamlined operational configurations. Our fixed concrete mixing plants are widely deployed in commercial ready-mix and infrastructure projects worldwide.



High, stable output rate and precise batching synchronization.
While many industry-standard concrete mixing plants with similar nominal capacities typically achieve only 70%–80% of their rated output—often due to delays during the batching process or fluctuations in mixing cycles—Haomei’s high-efficiency high efficiency fixed concrete mixing plants excel. Taking our popular HZS90 model as an example: it comes standard with a JS1500 twin-shaft forced mixer powered by dual 30kW motors, maintaining a stable 60-second mixing cycle and a theoretical capacity of 90 m³/h. The integrated trough-type inclined belt conveyor system, with a rated capacity of 120 t/h, ensures that aggregate supply is perfectly synchronized with the mixing cycle. This eliminates idle waiting times, enabling a stable, continuous output of 75–85 m³/h—an operational efficiency rate of 85%–90%, which is more than 10 percentage points above the industry average. The metering system utilizes fully independent electronic weighing modules. The dynamic metering error for aggregates is ≤±2%, while the error for cement, water, and admixtures is ≤±1%. An integrated dynamic drop-compensation algorithm ensures that the total batching time per cycle is kept within 45 seconds, minimizing wait times for material replenishment. The quality of the finished concrete fully complies with the EN 206 international standard.

Modular design that enables a rapid commissioning timeline.
Traditional, component-based concrete batching plants typically require 4–8 weeks for on-site installation, involving extensive civil work and welding. Haomei’s high-efficiency stationary concrete batching plants feature a modular design, with over 80% of core components pre-assembled at the factory. All modules are engineered to fit perfectly into standard 40HQ shipping containers. On-site, the process is limited to flange connections and electrical wiring—no additional welding is required. Small fixed concrete mixing plants can be operational in 5–7 days, while medium concrete mixing plants can be commissioned in 7–10 days—a reduction of over 40% compared to industry norms. In terms of civil infrastructure, standard models only require a leveled, hardened surface with a load-bearing capacity of ≥150 kPa; there is no need for heavy reinforced concrete foundations, reducing civil engineering costs by more than 30%. For a commercial ready-mix concrete project in Accra, Ghana, a client opted for our HZS60 concrete mixing plant; the time from the equipment’s arrival at the port to the start of full-scale production was just 8 days—nearly half the time required for similar local projects—allowing the client to begin generating revenue sooner.

Long-term operation with high reliability and low consumption.
The mixer’s liner plates and mixing blades are crafted from thickened high-manganese steel, offering a service life of ≥7,000 hours under normal operating conditions. The overall structure is streamlined to eliminate redundant components, resulting in an annual failure rate more than 30% lower than that of conventional models, with an equipment uptime consistently exceeding 95%. By incorporating energy-efficient motors and an optimized transmission system, the fixed mixing plant achieves a power consumption of only 12–14 kWh per cubic meter of concrete—a leading performance level within the industry. Equipped with an industrial-grade PLC control system, the equipment features real-time monitoring of operational parameters and automatic fault alerts. This reduces the time required for fault localization and troubleshooting from an average of 4 hours to less than 30 minutes, significantly minimizing losses caused by downtime.

Haomei high-efficiency fixed concrete mixing plants is CE-certified. They support multiple voltage standards (such as 380V/415V) and offer customizable, multi-language operating interfaces. Optional environmental modules—including pulse-jet dust collection systems and aggregate/sand recovery units—are also available. Haomei Machinery provides tailored configuration solutions and detailed quotations based on your specific production capacity requirements, site conditions, and operating environment. We welcome your inquiries.
