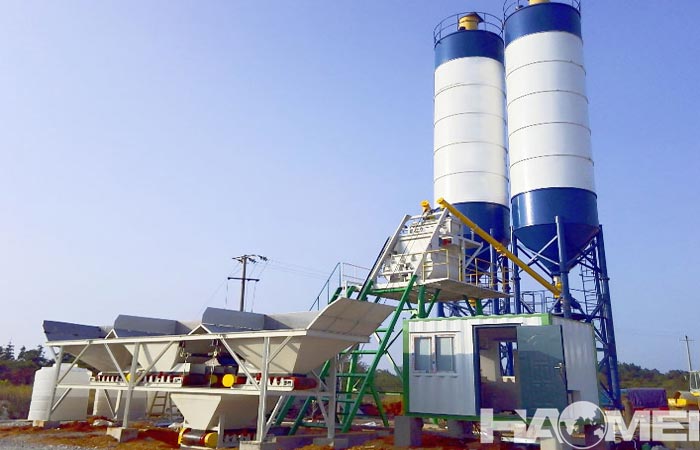

Haomei 50 Cubic Meter/Hour Concrete Batching Plant

Haomei Machinery, with years of experience in concrete mixing equipment manufacturing and export, deeply understands the core demands of the overseas infrastructure market: high efficiency and stability, compliance and adaptability, high cost-effectiveness, and the ability to handle different working conditions and standard requirements in various regions. As one of our main export models, the 50 cubic meter/hour concrete batching plant (HZS50) is not only a highly efficient solution tailored for small and medium-sized infrastructure projects, but also the culmination of our deep understanding of global customer needs and our accumulated technological expertise.

From a professional perspective, 50 cubic meter/hour concrete batching plant focuses on "compact efficiency, stability, and durability," balancing advanced technology with ease of operation. The core configuration uses a JS1000 twin-shaft forced mixer, ensuring high mixing uniformity and a batch mixing time of ≤60 seconds, guaranteeing a stable production capacity of 50 cubic meters per hour. The actual daily output can reach 300-400 cubic meters, perfectly adapting to the needs of overseas urban and rural roads, municipal infrastructure, and small precast component plants. The machine body is constructed from Q345B manganese steel, with reinforced nodes added to key stress points. Its design withstands winds up to level 8 and incorporates a pneumatic vibration damping system, effectively reducing material blockage and equipment wear. It is suitable for complex working conditions such as those in Southeast Asia's high temperatures and heavy rainfall, and remote areas of Africa.

Addressing the export characteristics, we adhered to international standards throughout the entire process, overcoming challenges related to market access and usage in overseas markets. HZS50 concrete batching plant equipment is fully CE certified and strictly complies with EU standards EN 206 for concrete and EN 12001-2 for conveyor equipment safety. The electrical system complies with EN 60204-1, and noise emissions are controlled below 85 decibels, allowing for smooth entry into the EU and most global markets. Furthermore, its modular, foundation-free design and pre-assembled structure eliminate the need for complex civil engineering. On-site installation and commissioning can be completed within 72 hours. Equipped with a movable base, it facilitates site relocation, significantly reducing infrastructure and logistics costs for overseas customers.

Based on years of export experience, we understand that the core pain points for overseas customers are not only equipment performance but also comprehensive lifecycle service support. This model is equipped with a fully automatic PLC central control system, with independent metering of materials such as aggregates, cement, and water, with an error of ≤±2%. One-button start completes the entire process of batching, mixing, and discharging, reducing reliance on manual labor and adapting to overseas scenarios with labor shortages. We provide multilingual operating manuals, overseas on-site installation and commissioning, remote technical support, and localized spare parts supply to address customers' after-sales concerns regarding cross-border use.

In the industry, the 50m³/h concrete batching plant model is considered the "golden choice" for overseas small and medium-sized infrastructure markets—compared to large equipment, it has moderate investment costs, a short payback period, and outstanding cost-effectiveness; compared to small equipment, it has stable production capacity, strong adaptability, and can meet the continuous construction needs of multiple scenarios. Haomei always adheres to the export concept of "adapting to local conditions," and can customize equipment configurations according to the voltage standards and environmental requirements of the target country, ensuring precise adaptation for both municipal projects in Southeast Asia and rural road construction in Africa. This was fully demonstrated in the rural road upgrade project around Manila, Philippines. This project was a key small-to-medium-sized infrastructure project aimed at improving people's livelihoods, primarily involving concrete pouring for main rural roads. The project faced a tight schedule, limited on-site civil engineering conditions, and the need to adapt to the Philippines' 277V, 60Hz voltage standard, as well as the complex conditions of high temperatures, heavy rainfall, and occasional typhoons. We customized the HZS50 mixing plant for our local partner, specifically optimizing the electrical system to match the local voltage, strengthening the waterproof sealing and wind-resistant structure of the machine body to suit the Philippine climate, and adopting a modular, foundation-free design. On-site installation, commissioning, and operation were completed in just 72 hours. During the project, the JS1000 mixer, with its high-efficiency mixing capacity, consistently produced concrete meeting local engineering standards, achieving a daily output of 380 cubic meters. The PLC fully automated control system significantly reduced reliance on manual labor, effectively addressing the pain point of local labor shortages. Combined with our remote technical support and localized spare parts supply, there were no equipment downtimes throughout the entire process. Ultimately, this helped the client complete the road pouring task 10 days ahead of schedule, earning high praise from the local engineering team and becoming a classic case study of our application to the Philippine small and medium-sized infrastructure market.

Professionalism builds quality, service wins trust. The Haomei 50 cubic meter/hour concrete batching plant is not only a highly efficient production machine, but also a vehicle for empowering global infrastructure and showcasing the strength of Chinese intelligent manufacturing. We always put ourselves in the shoes of our overseas clients, integrating industry experience into every design element, using stable performance, compliant configurations, and attentive service to help global clients achieve efficient construction and steady profitability.
