HZS180 Concrete Batching Plant Price USD
May 08, 2026

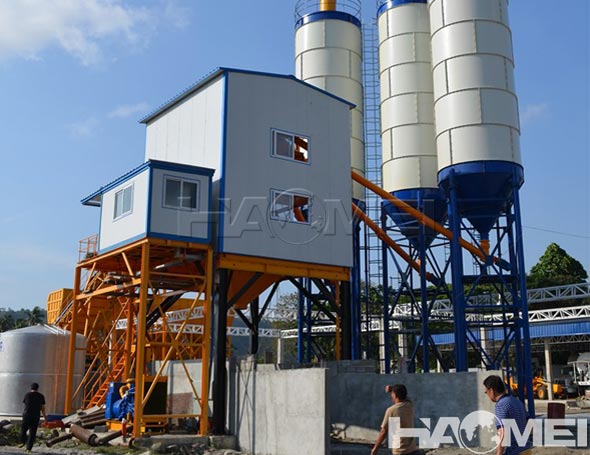

The Haomei HZS180 concrete batching plant is a flagship commercial concrete batching plant designed for medium and large-scale projects. Its theoretical capacity is 180 m³/h, with actual capacity reaching 160-170 m³/h. It is compatible with the JS3000 twin-shaft forced-action main engine and is our company's most popular and widely recognized model among customers in Asia, Africa, and the Middle East, based on 20 years of export experience.
The core technical specifications of the HZS180 directly determine its production efficiency and stability. Its core parameters determine production efficiency and stability: theoretical capacity of 180m³/h, actual capacity of 160-170m³/h depending on aggregate moisture content; JS3000 twin-shaft main unit with 2×55kW power, unloading time ≤15 seconds; total capacity of 4-bin aggregate system ≥100m³, inclined belt conveyor belt width 1000mm; standard powder bins are 4×100 tons (upgradeable to 6×100 tons), equipped with screw conveyor and arch breaking device; metering accuracy of aggregate ±2%, cement/fly ash ±1%, water/admixture ±1%; total installed power 260-280kW, unloading height 3.8-4.2m, suitable for 12-18 cubic meter mixer trucks.
As a manufacturer and exporter with 20 years of experience in the export field, I must clarify: the HZS180 concrete bathching plant does not have a fixed, uniform price. Its core price is composed of four main modules.
Core equipment accounts for 65-70% of the total cost, with a reference price range of $90,000-$140,000. This mainly includes the main unit, batching machine, control system, and conveying system. This is the core foundation for efficient equipment operation and also accounts for the largest portion of the price.
Auxiliary equipment accounts for 15-20%, with a reference price range of $20,000-$40,000. This covers powder silos, screw conveyors, air compressors, and dust removal systems, directly affecting the completeness of the equipment and production safety.
Automation configuration accounts for 5-10%, with a reference price range of $8,000-$20,000. This includes intelligent control systems, video monitoring, and remote diagnostic functions, which can significantly reduce labor costs and improve equipment operation and maintenance efficiency.
Customized options account for 3-8%, with a reference price range of $5,000-$15,000. These include environmental upgrades, insulation systems, and special voltage customization, which need to be flexibly adjusted according to the customer's local operating conditions.
Based on actual FOB China port quotations in May 2026, the reference HZS180 concrete batching plant price for the standard configuration (basic control system + 4×100-ton powder silos) is $140,000-$170,000; the reference price for the high-end version (intelligent control + 6×100-ton powder silos + fully automatic lubrication system) is $180,000-$220,000; and the reference price for the containerized mobile version, due to its ease of transportation and rapid installation, is $200,000-$240,000. It should be noted that these prices do not include installation and commissioning fees (approximately 8-12% of the equipment price), international freight ($8,000-$15,000, depending on the destination port), and customs duties (determined by the destination country's policies, varying significantly across different regions).
Based on years of experience dealing with overseas clients, I have summarized four key factors affecting the price of the HZS180 concrete batching plant for clients' reference during procurement. First, there are different configuration levels. The price difference between the standard and high-end versions can be over $40,000. Customers need to choose based on their project scale and long-term plans to avoid over-configuration and waste, and also avoid sacrificing core functions to save costs. Second, there are fluctuations in raw material prices. Steel accounts for 35-40% of the total equipment cost. The rise in steel prices in the first quarter of 2026 directly increased the cost per unit by $3,000-$5,000, which is one of the main reasons for price fluctuations. Third, there is the degree of customization. Different operating conditions in different regions vary greatly. Tropical regions require anti-corrosion upgrades (8% price increase), cold regions require heating systems (10% price increase), and special voltage customization requires an additional 5% cost. Fourth, there is the purchase scale. Purchases of 1-2 units require a 5% increase on the base unit price, purchases of 3 units or more can enjoy a 3-5% bulk discount, and bulk purchases of 10 units or more can be as low as $150,000 per unit, suitable for large commercial concrete companies or EPC contractors.
Based on overseas experience, four main factors influence the HZS180 concrete batching plant price:
First, configuration level, with a price difference of over $40,000 between the standard and high-end versions;
Second, raw material fluctuations, with steel accounting for 35-40% of costs, and a price increase in Q1 2026 adding $3,000-$5,000 to the cost per unit;
Third, customization, including tropical corrosion protection (+8%), cold-region heating (+10%), and special voltages (+5%);
Fourth, purchase volume, with discounts of 3-5% for 3 units or more, and bulk prices starting at $150,000 per unit for 10 units or more.
Compared to similar products, advantages of HZS180 concrete batching plantare significant: dual-shaft synchronous technology increases mixing efficiency by 15% and reduces fuel consumption by 8%, saving over $12,000 in annual operating costs; key components use HARDOX wear-resistant steel plates, extending the mixing blade life to 8,000 hours and reducing maintenance costs by 30%; the proprietary H-Control system supports remote diagnostics, reducing fault response time by 70%; pulse dust removal and a fully sealed design result in dust emissions ≤10mg/m³, meeting overseas environmental standards.
As sales manager in the concrete mixing equipment industry, I have always maintained one viewpoint: low price does not equal high cost-effectiveness. Many overseas clients initially focus only on the initial purchase price, neglecting equipment maintenance costs, operational efficiency, and lifespan, ultimately increasing their overall investment. The Haomei HZS180 features a modular design, allowing for flexible configuration based on the client's project location, concrete grade requirements, and power supply specifications. This avoids functional redundancy and achieves "customization on demand and optimal cost-effectiveness." Based on export process experience, we recommend clients place orders 3-4 months in advance to allow sufficient time for production, shipping, and installation/commissioning, avoiding impacts on project schedules. In terms of return on investment, the standard configuration of the HZS180 offers a return of approximately 18-22%, outstanding among similar export products.
For an accurate quote, please provide the project location, concrete grade requirements, power supply specifications, and local environmental requirements. We will leverage our years of export experience to customize the optimal equipment configuration and pricing plan for you, helping your project progress efficiently.
