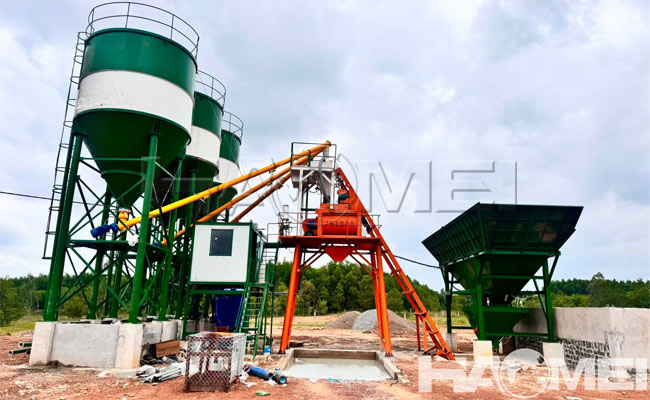

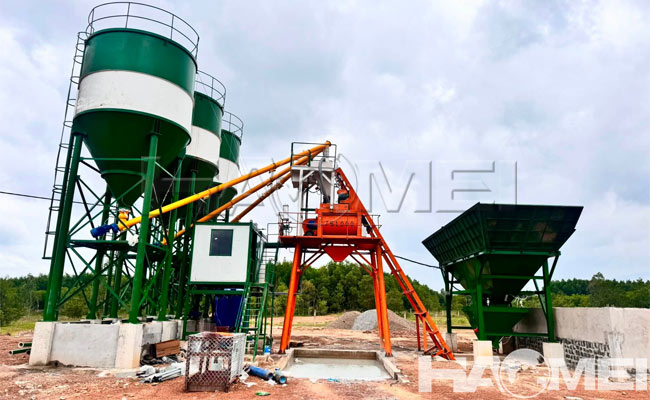

Hopper Type Concrete Batching Plants

Within the product portfolio of concrete batching plants, the hopper type is a specialized design specifically tailored for small to medium-sized engineering projects—it proactively sacrifices the peak efficiency of continuous feeding in exchange for a comprehensive improvement in structural reliability, ease of deployment, and ease of operation and maintenance. Haomei Machinery's HZS hopper type concrete batching plant serves various infrastructure scenarios worldwide with limited space and complex working conditions, based on this minimalist yet mature design logic.



The hopper type concrete batching plant uses a winch-driven vertical feeding system, reducing core moving parts by more than 40% compared to long-distance belt conveyor systems. This completely avoids common failure points such as belt misalignment, roller wear, material spillage, and dust intrusion. In harsh conditions such as Middle Eastern sandstorms and dusty African environments, the annual failure rate of the hopper structure is approximately 50% lower than that of the belt-type system, resulting in more stable equipment uptime. Performance is not compromised despite the simplified structure: all models come standard with a JS series twin-shaft forced-action main unit, with 25-60 m3/h speeds corresponding to models JS500 to JS1000, and a standard mixing cycle of 60-72 seconds; an independent electronic weighing and metering system ensures aggregate dynamic error ≤±2% and powder, water, and admixture error ≤±1%, fully complying with EN 206 international concrete standards, and can stably produce C10-C50 grade ordinary concrete and pumped concrete.

Hopper-type concrete batching plants do not require pre-reserved inclined conveyor belt corridors, resulting in a highly compact horizontal layout. For the same production capacity, the footprint is 30%-40% smaller than belt-type stations. Taking the HZS35 concrete batching plant model as an example, the main body occupies only about 9m × 5.5m, making it suitable for installation in confined urban construction sites, mountainous mining areas, and other terrain-restricted locations. Simultaneously, it eliminates the need for supporting civil engineering for belt conveyor corridors, requiring only a leveled and hardened ground surface for installation, resulting in civil engineering costs approximately 35% lower than belt conveyors of the same capacity. Modular design allows for compact component sizes, making all components compatible with standard container shipping, thus improving controllable cross-border logistics costs. On-site installation takes only 5-7 days, nearly 30% shorter than belt conveyors, enabling rapid response to overseas projects with tight schedules.

Addressing the pain point of scarce skilled workers in remote overseas regions, the hopper type concrete batching plant's control system has been specifically optimized, removing unnecessary complex speed adjustments and multi-level correction functions while retaining core production logic. The user interface is intuitive and clear, allowing ordinary workers to operate independently after 3 days of training. Routine maintenance only requires inspection of wire ropes, pulley blocks, and wear-resistant parts of the main unit, reducing the number of vulnerable parts by 30% compared to belt conveyors, resulting in annual consumable costs that are 20%-25% lower, significantly lowering the long-term operational threshold for customers. Meanwhile, the core components of the equipment all adopt internationally standardized specifications, and spare parts are sourced from a wide range of channels, eliminating the need for original equipment manufacturer (OEM) custom parts and further reducing geographical limitations on maintenance.

Essentially, the hopper type concrete batching plant is not a product of technological downgrading, but rather a scenario-oriented, precise design. For small and medium-sized overseas projects with limited space, complex operating conditions, and weak maintenance capabilities, it achieves higher comprehensive adaptability than high-end models with just the right performance and extremely low deployment costs. Haomei hopper-type batching plants always adhere to the design principle of "no compromise on core performance, and simplification of non-core processes," providing highly reliable concrete production solutions for global customers.
