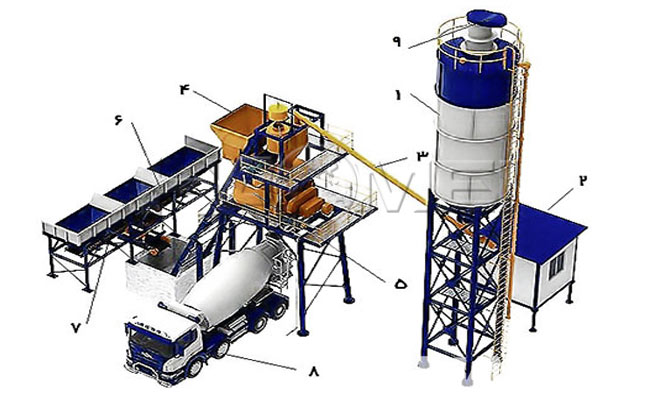

Concrete Batching Plant Working Principle

As a product manager at Haomei Machinery, having worked in the concrete batching plant field for many years, I deeply understand that its core value lies in transforming dispersed raw materials into homogeneous and stable finished concrete. Concrete batching plant working principle is not simply "mixing and stirring," but a systematic process that balances precision, efficiency, and environmental protection.

The core of a concrete batching plant working principle is "precise proportioning + efficient mixing." The overall process can be divided into five major stages: raw material storage, metering and batching, conveying and feeding, forced mixing, and finished product discharge. Each stage is interconnected and seamlessly connected; deviations in any stage can affect concrete quality. This is the core reason why we consistently emphasize "full-process controllability" in our R&D—there are too many engineering hazards in the industry caused by inaccurate metering and uneven mixing, a profound realization we have gained through years of experience.

1. Raw material storage:
Raw material storage is fundamental, yet easily overlooked. Raw materials such as sand, gravel, cement, and fly ash must be stored separately. Sand and gravel are stored in aggregate bins, powder materials in sealed powder tanks, and water and admixtures in dedicated storage tanks.
Based on industry experience, we have found that moisture and contamination of raw materials are the primary hidden dangers affecting the accuracy of proportioning. Therefore, Haomei concrete batching plants have incorporated moisture-proof and anti-contamination structures into their silo designs, and powder tanks are equipped with anti-bridging devices to prevent powder clumping, reducing errors from the source. This is also a key area of optimization based on customer feedback.

2. Metering and batching:
Metering and batching directly determines the strength and stability of concrete. Unlike traditional extensive metering, modern concrete batching plants use high-precision sensors and intelligent control systems to accurately weigh each raw material.
Based on our practical experience, metering errors mainly stem from sensor performance, material characteristics, and operating habits. Haomei concrete batching plants use high-accuracy sensors, coupled with adaptive error compensation algorithms, to control metering errors within ±1%. Simultaneously, the optimized user interface reduces human error and solves the common problem of proportioning deviations in the industry.

3. Conveying and feeding:
The conveying and feeding process emphasizes "high efficiency and orderliness." Aggregates are transported via belt conveyors, powders via screw conveyors, and water and admixtures via dedicated pipelines. All raw materials are fed into the mixing host in a preset sequence.
A key industry pain point here is material spillage and residue during the conveying process. We reduce material loss by optimizing the conveyor angle and adding sealing devices. Simultaneously, we design a cross-feeding process to shorten the production cycle and improve operational efficiency.

4. Forced mixing:
Forced mixing is crucial for the homogeneity of the finished product and is also a key technological advantage of Haomei. The mixing host employs a forced mixing method, using high-speed rotation of blades on the mixing shaft to thoroughly mix the raw materials. The mixing time is flexibly adjusted according to the concrete grade.
Based on years of R&D experience, we have optimized the mixing shaft structure to reduce dead zones. Simultaneously, an intelligent control system monitors the mixing status in real time to avoid "under-mixing" and "over-mixing," balancing mixing quality and energy consumption control. This is one of our core competitive advantages that distinguishes us from similar products.

5. Finished product discharge:
The finished product discharge process must balance efficiency and environmental protection. The uniformly mixed concrete is discharged into the mixer truck through the discharge port, while the dust removal device is activated simultaneously to reduce dust pollution.
With years of experience in the industry, we deeply understand that environmental protection and efficiency are not contradictory. Haomei concrete batching plants integrate dust removal and noise reduction designs into the entire process, meeting national environmental standards while ensuring a safe working environment for operators.

In summary, the working principle of concrete batching plant is a systematic and precise collaborative process, underpinned by a reverence for engineering quality and a solution to industry pain points. As product managers at Haomei Machinery, we firmly believe that a good concrete batching plant not only requires a thorough understanding of its working principles but also the integration of industry practices and technological optimization into every step, making precision, efficiency, and environmental protection the core characteristics of the product. This is also our original intention in deeply cultivating the industry and serving our customers.
